Description
Agfa UV Ink Line Kit
This Agfa UV Ink Line Kit is not Agfa OEM Parts and it’s replacement parts from Lavaink.
It includes the following Agfa Replacement Parts:

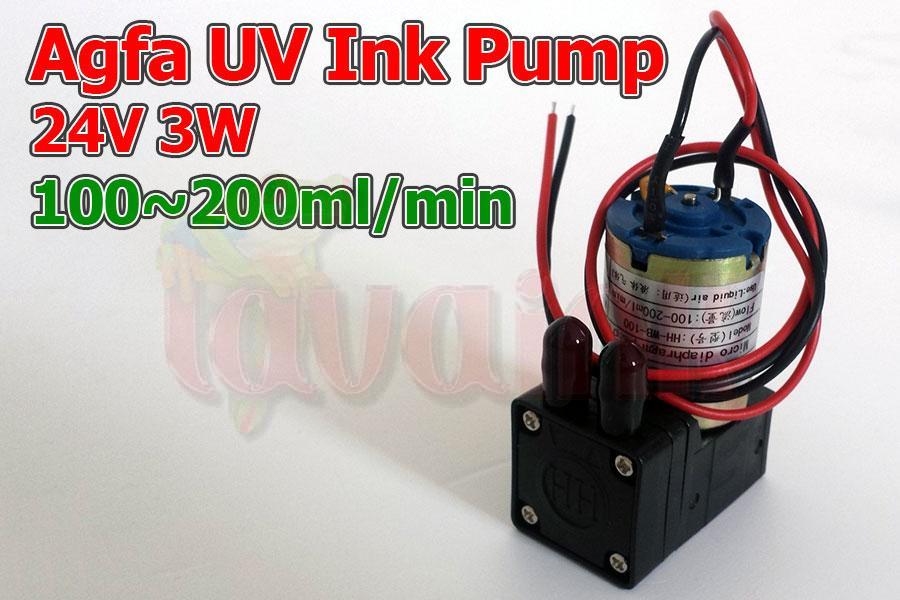

- One Agfa Ink Pump
- Ink Filter (5 um)
- 36 feet 4*6 mm high quality Agfa uv ink tubing. Inner Diameter is 4 mm and external Diameter is 6 mm. It’s hard uv tubing that is easy to install it through Agfa ink line belt. This uv tubing is for Agfa 2540 uv flatbed printer and similar machine.
- One Agfa Sub tank. This sub tank is metal sub tank and the size is 38*38*80 mm. It has two ways valves and one is for ink line and other one is for flush solution line. You can just turn it at ink line valve for agfa ink line because Agfa has its own flush solution line.

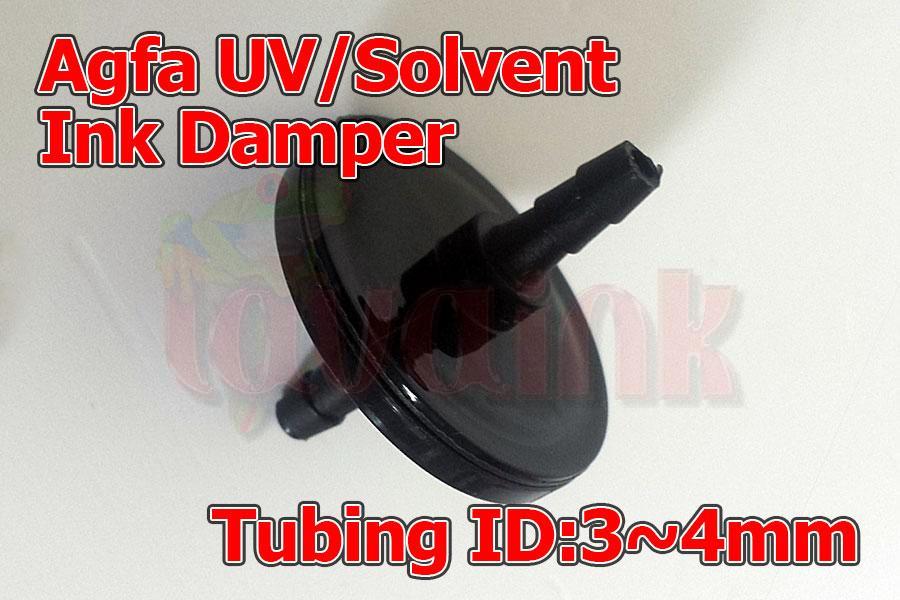

- One Agfa Ink Damper. This uv ink damper will be installed after sub tank to protect the printhead from sediment clogged.
- For Agfa heater for sub tank. You just need to connect agfa sub tank heater to our alternative sub tank and that’s it.
This Agfa alternative solution for Agfa ink line is much better than Agfa OEM ink line solution because Agfa OEM ink line is too thin and it’s easy to be clogged. Also we separated all parts and it’s easy to maintain the whole ink line. Like ink pump, ink pump filter and ink damper are separated. The most important thing is we separate the ink line from each colors. You just need to replace one sub tank if sub tank was clogged. But all Agfa OEM sub tanks are connect together and you have to replace all colors sub tank even just one sub tank top cover is clogged. Lavaink Agfa UV Ink Line Kit solution save you big money.
