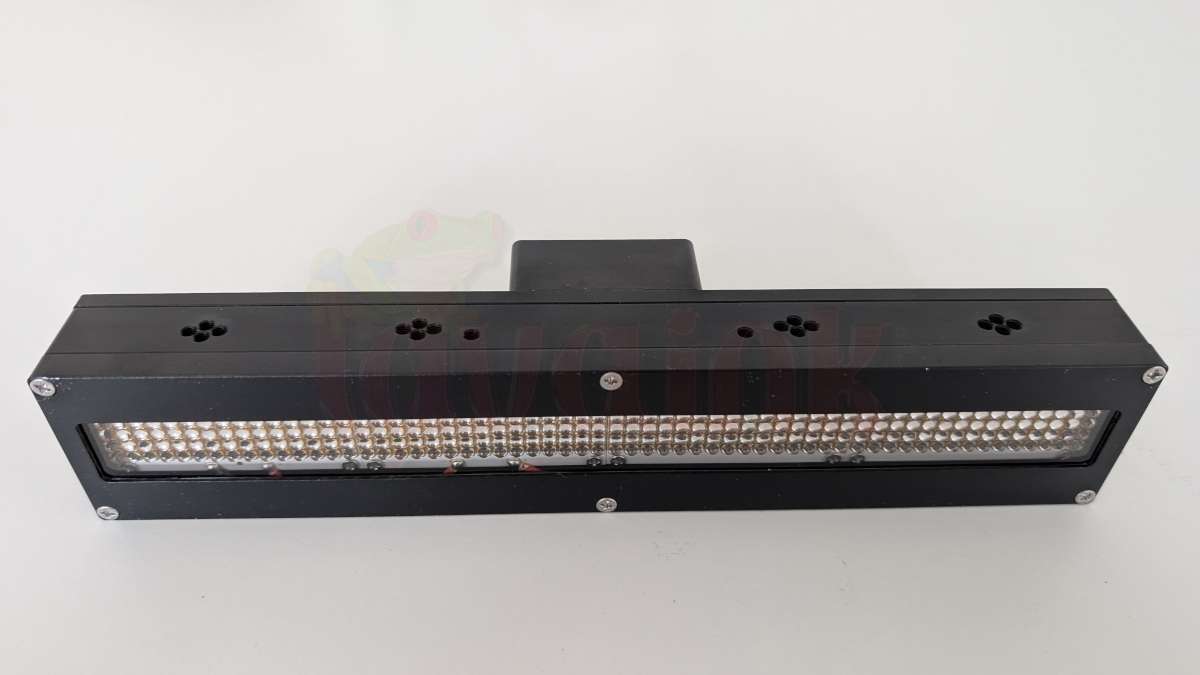

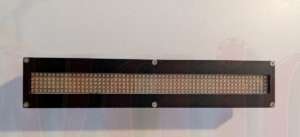

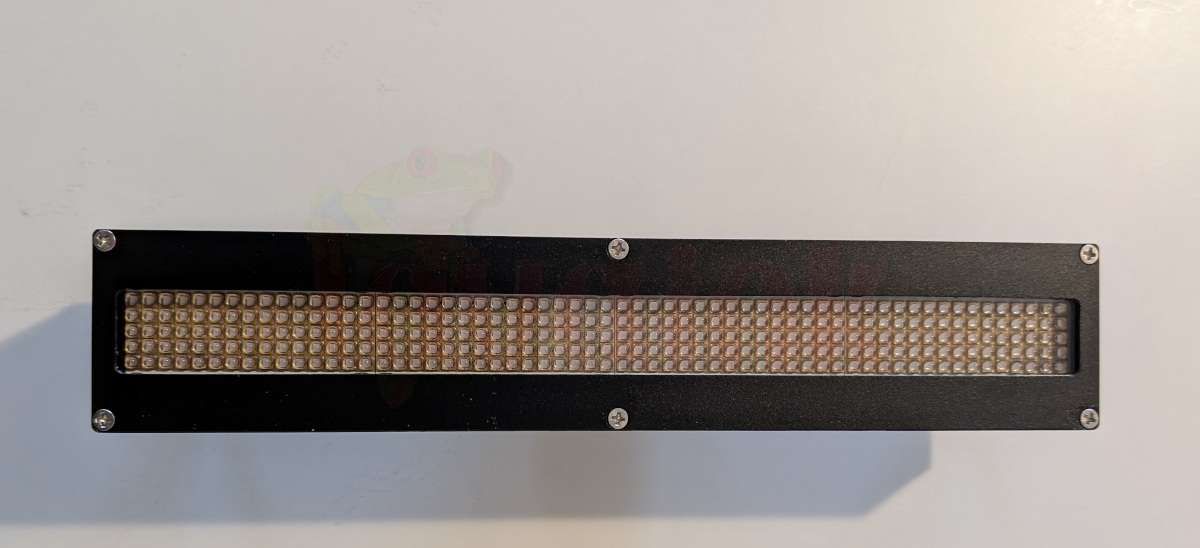

Flora Precision UV-LED Curing Module (395nm)
Engineered for high-speed industrial applications, this Flora LED curing lamp delivers a concentrated 20 x 240 mm emission area within a sleek, space-saving housing. Built for stability and endurance, it is the professional choice for wide-format UV printing and specialized industrial bonding.
-
Powerful 395nm Output: Optimized wavelength for rapid, consistent curing of UV-sensitive inks and coatings.
-
Exceptional Lifespan: Rated for 15,000 to 20,000 hours of operation with standard water-cooling maintenance.
-

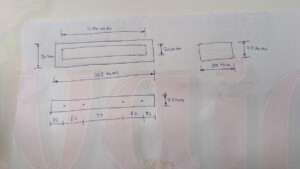

Compact Industrial Form: External dimensions of 265L x 50W x 25H mm, designed for easy integration into existing production lines.
-

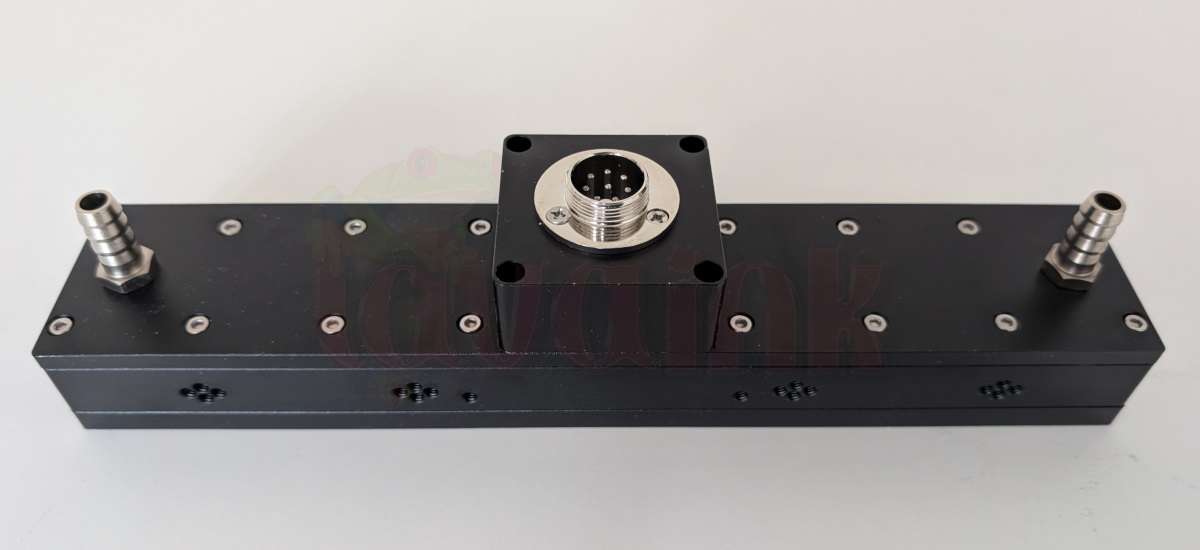

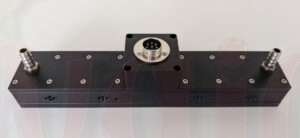

Advanced Thermal Management: High-efficiency water-cooling system ensures peak performance and prevents heat-related material warping.
Technical Specifications
| Feature | Specification |
| Emission Area | 20 x 240 mm |
| External Dimensions | 265 x 50 x 25 mm |
| Wavelength | 395nm |
| Service Life | 15,000 – 20,000 Hours |
| Cooling Method | Industrial Water-Cooling |

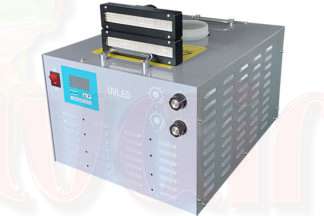

Flora High-Performance UV LED Curing System
Engineered for seamless integration and industrial-grade reliability, the Flora UV LED lamp delivers powerful 395nm curing with unmatched stability. Designed for precision and longevity, it is the ultimate lighting solution for high-speed UV printing and industrial bonding.
-
Industrial Longevity: Provides an exceptional lifespan of 15,000 to 20,000 hours under standard water-cooling maintenance.
-
Optimized 395nm Output: High-intensity UV output ensures rapid, consistent curing for a wide range of inks and coatings.
-
Advanced Water-Cooling: Ensures stable thermal management, protecting the LED chips for sustained peak performance.
-
Eco-Efficient Efficiency: Minimal heat radiation and low power consumption compared to traditional mercury lamps.
Maximizing the Lifespan of Your Flora UV Flatbed Printer LED Lamps
The LED curing system is the heart of the Flora UV Flatbed Printer, providing the precision and power necessary for high-quality, instant ink adhesion. Unlike traditional mercury vapor lamps, the LED lamps used in Flora printers are designed for extreme durability and efficiency. However, achieving their full potential requires a commitment to consistent maintenance and an understanding of the integrated water-cooling system.
The Power of Water Cooling
To maintain peak performance, Flora LED lamps utilize a sophisticated water-cooling architecture. This system is critical because, while LEDs are more efficient than older technologies, they still generate significant internal heat. If this heat is not dissipated, it can degrade the diodes and shorten the lamp’s life.
A well-maintained Flora LED lamp boasts an impressive operational lifespan of 15,000 to 20,000 hours.
Essential Maintenance Protocols
To ensure you reach that 20,000-hour milestone, the following maintenance schedule is recommended:
-

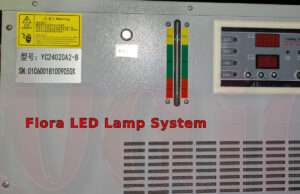

Quarterly Water Tank Inspections: Every three months, technicians must inspect the water cooling unit (chiller). This involves checking coolant levels and ensuring the fluid remains clear and free of debris.
-
Coolant Quality: Always use the manufacturer-recommended coolant or distilled water to prevent mineral buildup and calcification within the lamp’s internal channels.
-
Flow Rate Monitoring: Ensure that the pump is circulating fluid correctly. A drop in flow rate is often the first sign of a pending overheat issue.
-
Dust and Airflow: While the lamp is water-cooled, the surrounding housing and the chiller’s radiator must be kept free of dust to allow for secondary heat dissipation.
Long-Term Benefits
By adhering to a disciplined maintenance routine—specifically the 90-day water system check—users can capitalize on the inherent stability of the Flora LED system. This not only preserves the 15,000+ hour lifespan but also ensures consistent UV output intensity. Consistent intensity translates directly to better color reproduction and stronger ink bonding, reducing waste and increasing the overall ROI of your printing operations.
In the world of industrial printing, longevity is a result of proactive care. Treat your cooling system with priority, and your Flora LED lamps will provide years of reliable service.
