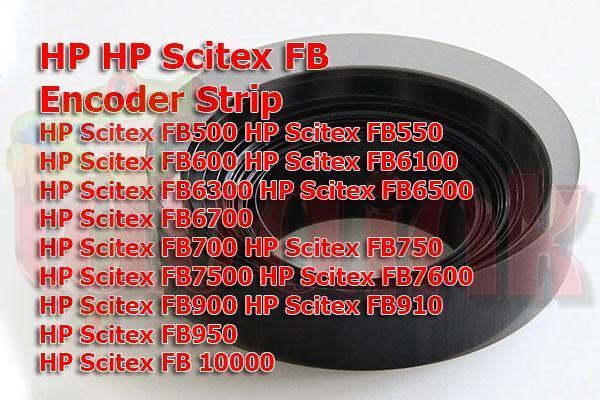

HP Scitex FB Encoder Strip
HP Scitex FB Encoder Strip
HP Scitex FB Encoder Strip CH971-91425
Price: $119.95 USD

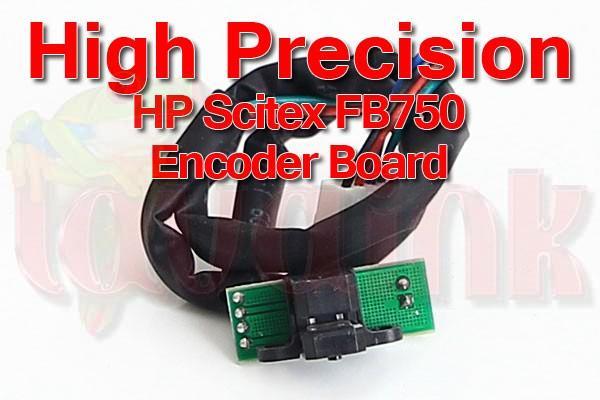

HP Scitex FB Encode Sensor
HP Scitex FB Encoder Sensor CQ114-67162
HP Scitex FB Encoder Strip
HP Scitex FB Encoder Strip CH971-91425 Encoder Sensor CQ114-67162. This Linear Encoder is suitable for HP Scitex FB950 printers. This is the original HP Scitex part (number CH971-91425). This Linear Encoder is 372cm long and 2.4cm wide.
This HP scitex encoder strip is compatible with the following hp printers:
- HP Scitex FB500 HP Scitex FB550
- HP Scitex FB600 HP Scitex FB6100 HP Scitex FB6300 HP Scitex FB6500 HP Scitex FB6700
- HP Scitex FB700 HP Scitex FB750 HP Scitex FB7500 HP Scitex FB7600
- HP Scitex FB900 HP Scitex FB910 HP Scitex FB950
- HP Scitex FB 10000
How to choose the right HP Encoder Strip for your HP Scitex FB printer?
The other thing is how length for your HP Encoder Strip.
How to clean HP Encoder Strip?
You will need Isopropyl Alcohol, Cleaning Swabs and Paper Towels.
Putting two drops of alcohol onto each side of the cleaning swab. Dab the swab on the paper towel to soak up any excess liquid.
Wipe the exposed area of the HP Encoder Strip gently in one direction, do not try to scrub the strip or bend it. Repeat the cleaning for the back of the HP Encoder Strip.
Put the machine into Cleaning Mode under the Maintenance Sub-Menu. You will now be asked to remove the maintenance cover on the left side of the printer.
After the Head Carriage moves to the left side of the printer, continue to clean the area of the HP Encoder Strip that is now exposed over the docking area.
Once the HP Encoder Strip has been cleaned, perform a Limit Initialization to reset the Head Carriage.
All printer manufacturers use optical HP Encoder Strips in inkjet printers to tell the print head carrier how for it has moved and also when it return to home position. If you get a bad printer jam hat blocks the carrier this HP Encoder Strip can get disconnected and then the printer can not print anything. We are about to show you how to repair the strip if it is damaged and reinstall it so the printer can function again. This guide uses the Roland Printer as an example but the steps are the same for any printer that uses these HP Encoder Strips. The first thing to do is check the strip for damage. Check both ends and make sure the plastic is not torn. The ends should have an opening about 1/4 inch from the end as seen here.
If your HP Encoder Strip is torn you can usually repair it with packing tape. Wrap the tape around the end several times and the use a small knife to cut the tape where the original hole was as seen below. Then cut the tape off the strip around the side and end.
Now its time to reinstall the strip. The HP Encoder Strip attaches to retainer brackets and both sides of the printer and is threaded through the printhead carrier in the middle. You will need the carrier to be in the middle of the printer. To get it there you will need to power up the printer and open the cover like you were going to change the print heads. Power up the printer and the print heads should start to move to the side. When they get about the center of the printer you will need to pull the power plug so they stop moving. Connect one end of the HP Encoder Strip as seen here.
Now thread the HP Encoder Strip through the carrier as seen here. The outside opening is about 1/2 inch but the slot the encoder goes in is only about 1/16in so be patient.
Then connect the other end of the HP Encoder Strip, the left hard side is spring metal to tension the strip and keep it tight.
