IKO LWH 60 Bearing Block

Description

IKO LWH 60 Bearing Block

How to install IKO LWH 60 Bearing Block?

Loose or Tight the screws of IKO LWH 60 Block marked yellow to adjust the tension between block and linear rail.

1. Must cleaning your IKO LWH 60 rail perfect because a little durst can cause to fail to install.
2. Put lubricating oil on the IKO LWH 60 Block rail.
3. Must be keep perfect alignment to install the IKO LWH 60 Block. In some case, no enough space to install IKO LWH 60 Block and you need to uninstall the rail to install it.
4. Loose 4 screws to let the IKO LWH 60 Block can go to the rail easily.
5. Put IKO LWH 60 Block gently to the rail and sliding slowly the whole block.
6. Then tight the IKO LWH 60 Block’s screws correct to keep the IKO LWH 60 Block perfect to fit the rail.

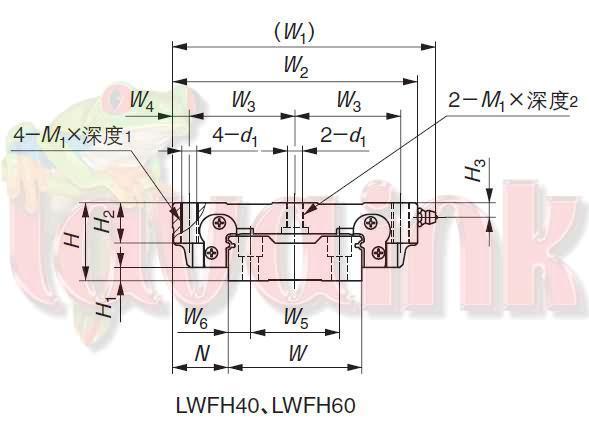

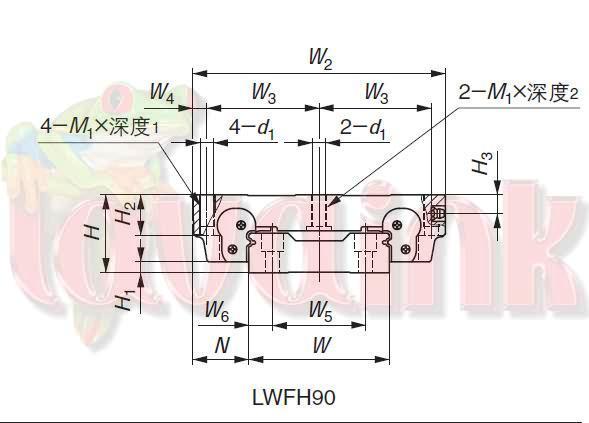

This IKO LWH 60 Bearing Block Has the following specifications:

Size: 60

Block Weight: 1.29 g

Rail Weight: g/100 mm

H: 35 mm

H1: 6 mm

N: 25 mm

W1: 120

W2: 110 mm

W3: 47.5 mm

W4: 7.5 mm

L1: 90 mm

L2: 75 mm

L3: mm

L4: mm

L5: 45

LW1:

M1: M 8X18 mm

D1: 6.7 mm

H2: 18 mm

H3: 6.5 mm

H5:

W: mm
