IKO MXC 15 Bearing Block
How to install IKO MXC 15 Bearing Block?
Loose or Tight the screws of IKO MXC 15 Block marked yellow to adjust the tension between block and linear rail.
- Must cleaning your IKO MXC 15 rail perfect because a little durst can cause to fail to install.
- Put lubricating oil on the IKO MXC 15 Block rail.
- Must be keep perfect alignment to install the IKO MXC 15 Block. In some case, no enough space to install IKO MXC 15 Block and you need to uninstall the rail to install it.
- Loose 4 screws to let the IKO MXC 15 Block can go to the rail easily.
- Put IKO MXC 15 Block gently to the rail and sliding slowly the whole block.
- Then tight the IKO MXC 15 Block’s screws correct to keep the IKO MXC 15 Block perfect to fit the rail.

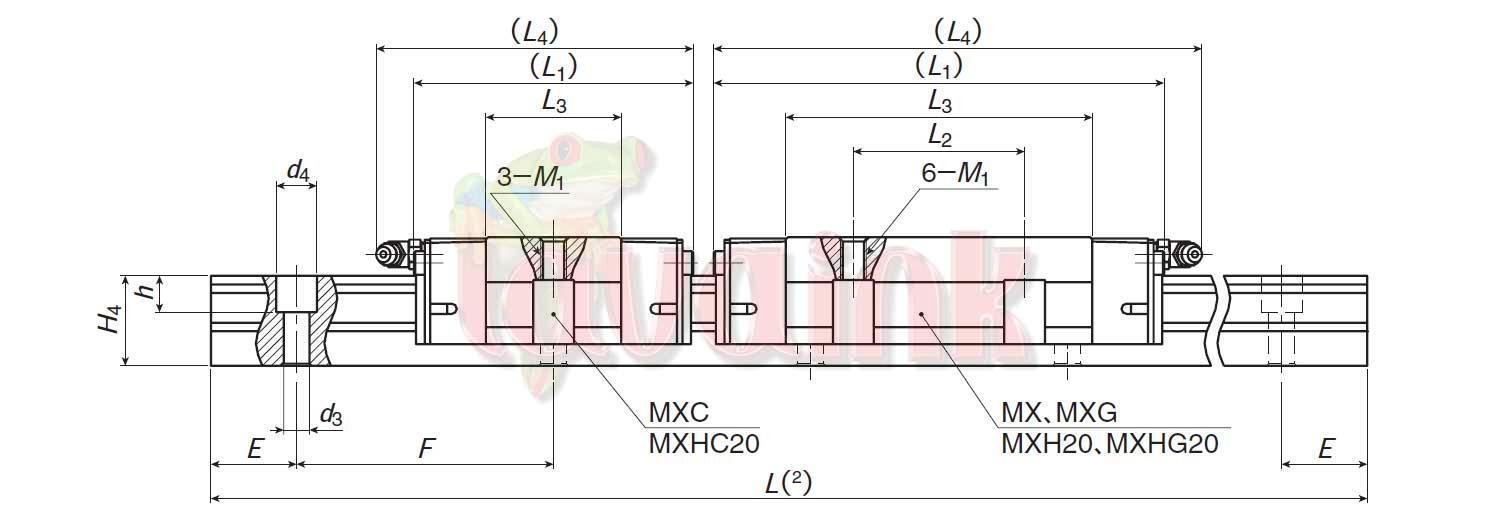

This IKO MXC 15 Bearing Block Has the following specifications:
Size: 15
Block Weight: 0.13 g
Rail Weight: g/100 mm
H: 24 mm
H1: 4 mm
N: 16 mm
W: 15 mm
W2: 47 mm
W3: 19 mm
W4: 4.5 mm
W5:
L1: 52 mm
L2: mm
L3: 24 mm
L4: 55 mm
L5: mm
D1: 4.4 mm
M1: M5 mm
H2: 7 mm
H3: 3.5 mm
H4: 16.5 mm
H5: 3 mm
d3: 4.5 mm
d4: 8 mm
h: 6 mm
E: 30 mm
F: 60 mm
