Description

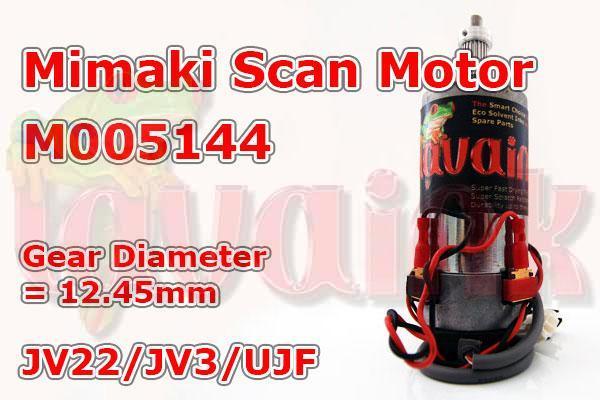

Mimaki JV3 JV22 UJF Y Motor M005144
This Mimaki JV3 JV22 UJF Y Motor M005144 is for Y axis along with printhead moving direction. Please make sure gear diameter is 12.45mm. For mutoh scan motor installation and scan motor gear diameter is the most important thing you need to check. Then check your cable connector but you can use your old cable connect in case your cable is not compatible to our cable. But our cable is Mutoh standard scan motor cable and 100% compatible to OEM scan motor cable. M005144 E300342 E300440.
How to buy correct Mimaki JV3 JV22 UJF Y Motor M005144?

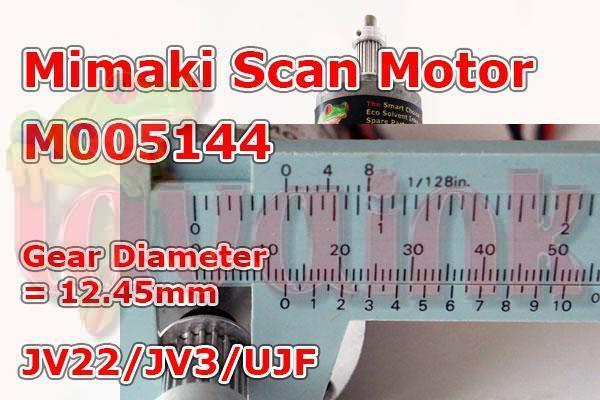

The first thing is gear diameter. This mutoh scan motor gear diameter is exactly 12.45mm. And then the second thing is motor screw installation position and this screw distance is 26.00 mm. 4 screws are not included. And the last thing is cable connector. This one is easy and also you can use your old cable connector in case your cable connector is not standard one.
Why replace Mimaki JV3 JV22 UJF Y Motor M005144?
Good quality scan motor can guarantee delivery highest printing precision. You definitely need to replace mimaki scan if your motor is too old to move.
