Description

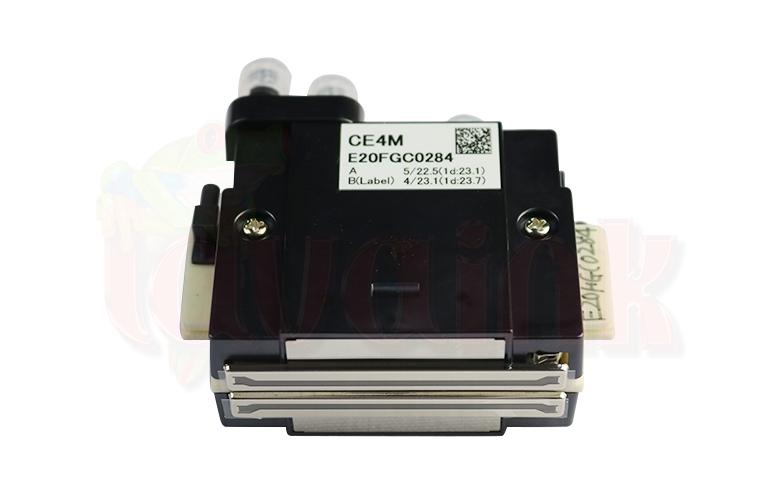

Toshiba CE4 printhead for OCE, VUTEk Raster H650 H652 etc.
This Toshiba CE4 printhead is not only for Raster H650 but also for the following printers:
Part number is 45129144.
EFI
- Rastek H650
- Rastek H652
- Rastek H700
- Rastek R3225
- Rastek T1000
- Rastek T660
Flora
- F1 180UV
Raster
- Daytona H700UV
Product specifications
Technology: Multi-point grayscale micropiezo
Typical ignition frequency: 2.8 – 28 kHz
Active nozzle: 636
Drop amount: 6 – 90 pl
Print width: 53.6 mm
Nozzle spacing: 169μm
Original resolution: 150 dpi
Gray level: 16
Print head weight: 148 grams
Size: 85 x 70 x 23 mm
Ink compatibility: oily pigment inks and UV curable pigment inks
