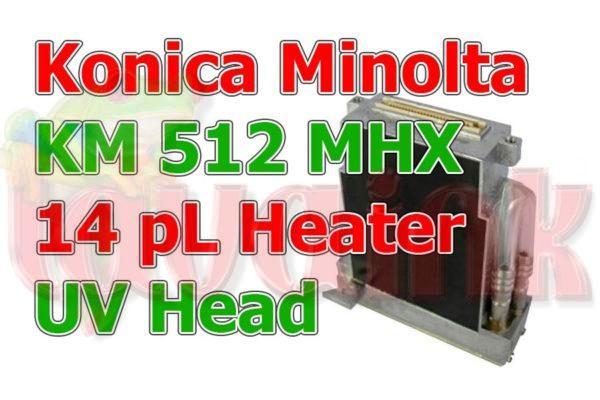

This is 14 pL konica km512 uv printhead with two ink port. Feature
Shear mode, Piezo On-Demand Printhead
Piezo on-demand inkjet ejects ink drops utilizing deformation of tiny ink chambers composed of electricity material, by applying force field in accordance with signals. The principle of shear mode piezo feat with shared wall structure permits lower power consumption similarly as a high-density nozzle array.
512 Nozzle with 360 dpi Spacing
High resolution, 360 nozzle per in. spacing has enabled composition 512 Nozzle on a comactly designed print head. The KM512 series consists of sort L, M and S, adore unit drop volume capabilities of 42pl, 14pl and 4pl severally. the sort M and S are often driven in four level grey-scale mode for reproducing top quality pictures with power tool tones.
Compatible with Solvent, UV, Oil …
Due to its specially designed internal structure, the KM512 series boasts a large vary of ink compatibility, together with aggressive solvent inks generally used for super-wide format printers. Inks that have high consistence at temperature,such as ultraviolet ink, are often het up to fifty five degrees stargazer with the H type’s internal heater.
Enabling Comapct style of Head Mount System
This series is specially designed to possess a “wing” structure so users will exactly align the print heads delicately. This feature permits simple combination of page-width printhead units for the aim of single-pass high-speed printing. identical external style permits interchangability of various sort heads on identical mount system. This Konica Minolta KM512 Printhead is for the following UV printers:
Ampla Digital Targa Elite. Anhui Liyu Victor KJ2512. Victor KJ2520. Victor KJ3020. CET Color FK512Z. Dilli Neo Titan UV-1606VS. Neo Titan UV-1606W. Neo Titan UV-2506W. Neo Titan UVT-1680. Titan UV-1604D. UV Printer 2512 UV. 2518 UV. 2518-16 UV. 3020 UV. Flora F1 250UV. F1 320UV. F1 180UV. PP 1816UV. PP 2512UV. PP 3218UV. GCC StellarJet K100UV. StellarJet K72UV. StellarJet K72LSUV. StellarJet 183uv. StellarJet 183uvk. Gerber Solara Ion Z. CAT UV. Grapo Manta. Manta Slim. Manta White. Octopus II. IP&I Cube 260UV. Cube 160. Cube 1606F. Cube 1606S. Cube 1606uv. Leopard UVB. SkyJet UV Flatmaster UV 2512. Flatmaster UV 3020. Sun Innovations Neo UV-LED Evolution 1.6. Neo UV-LED Evolution 2.5. Neo UV-LED Evolution Compact. Neo UV-LED GlassTech. Neo UV-LED Flatbed. Universal UV-LED 1.6. Universal UV-LED 2.5.
