Agfa Encoder

Description

Agfa Encoder Strip

Agfa Encoder Strip and Agfa Encoder Sensor for all agfa printers

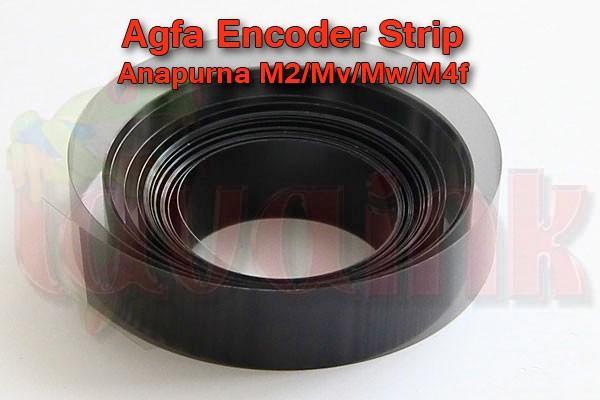

Agfa Encoder

This encoder strip is for the following printers: Agfa Anapurna-M-1600. Agfa Anapurna-M-2050. Agfa Anapurna-2500-LED. Agfa Anapurna-M2540-FB-KM1024(1.5×2.5). Agfa Anapurna M3200 RTR. Agfa Anapurna-M2 (1.6M). Agfa Anapurna M4f(1.6M). Agfa Anapurna Mv(1.6M). Agfa Anapurna-Mw (1.6M). Agfa Anapurna M2(1.6M).

Agfa Encoder Board

This encoder strip is for the following printers: Agfa Anapurna-M-1600. Agfa Anapurna-M-2050. Agfa Anapurna-2500-LED. Agfa Anapurna-M2540-FB-KM1024(1.5×2.5). Agfa Anapurna M3200 RTR. Agfa Anapurna-M2 (1.6M). Agfa Anapurna M4f(1.6M). Agfa Anapurna Mv(1.6M). Agfa Anapurna-Mw (1.6M). Agfa Anapurna M2(1.6M).

Agfa Encoder

This encoder strip is for the following printers: Agfa Jeti-1224-HDC-FTR Ricoh Gen 4 Agfa Jeti-3020-Titan Ricoh Gen 4 Agfa Jeti-3312-Titan Ricoh Gen 6 Agfa Jeti-3324-Titan Ricoh Gen 4 Agfa Jeti-TitanX Ricoh Gen 4 Agfa Jeti-3348-S Ricoh Gen 5 Agfa Jeti-3348-HS Ricoh Gen 5 Agfa Jeti-3348-HSS Ricoh Gen 5 Agfa Jeti-3348-UV-Galaxy Agfa Jeti-3348-UV-JetSpeed Agfa Ardeco 3308 Ricoh Gen 4 Agfa Ardeco 3312 Ricoh Gen 4

Agfa Encoder Board

This encoder strip is for the following printers: Agfa Jeti-1224-HDC-FTR Ricoh Gen 4 Agfa Jeti-3020-Titan Ricoh Gen 4 Agfa Jeti-3312-Titan Ricoh Gen 6 Agfa Jeti-3324-Titan Ricoh Gen 4 Agfa Jeti-TitanX Ricoh Gen 4 Agfa Jeti-3348-S Ricoh Gen 5 Agfa Jeti-3348-HS Ricoh Gen 5 Agfa Jeti-3348-HSS Ricoh Gen 5 Agfa Jeti-3348-UV-Galaxy Agfa Jeti-3348-UV-JetSpeed Agfa Ardeco 3308 Ricoh Gen 4 Agfa Ardeco 3312 Ricoh Gen 4.

Agfa UV ink    UV Printer

Agfa Encoder Strip

You will need Alcohol, Cleaning Swabs Paper Towels. Putting two drops of alcohol onto each side of the cleaning swab. Dab the swab on the paper towel to soak up any excess liquid. Wipe the exposed area of the hp encoder strip gently in one direction.

How to clean Agfa Encoder Board? You will need Isopropyl Alcohol, Cleaning Swabs and Paper Towels. Putting two drops of alcohol onto each side of the cleaning swab. Dab the swab on the paper towel to soak up any excess liquid. Wipe the exposed area of the agfa Linear Encoder Board gently in one direction, do not try to scrub the strip or bend it. Repeat the cleaning for the back of the agfa Linear Encoder Sensor. Put the machine into Cleaning Mode under the Maintenance Sub-Menu. You will now be asked to remove the maintenance cover on the left side of the printer. After the Head Carriage moves to the left side of the printer, continue to clean the area of the agfa Linear Encoder Board that is now exposed over the docking area. Once the agfa Linear Encoder Sensor has been cleaned, perform a Limit Initialization to reset the Head Carriage. All printer manufacturers use optical agfa Linear Encoder Boards in inkjet printers to tell the print head carrier how for it has moved and also when it return to home position. If you get a bad printer jam hat blocks the carrier this agfa Linear Encoder Sensor can get disconnected and then the printer can not print anything. We are about to show you how to repair the strip if it is damaged and reinstall it so the printer can function again. This guide uses the Roalnd Printer as an example but the steps are the same for any printer that uses these agfa Linear Encoder Sensors. The first thing to do is check the strip for damage. Check both ends and make sure the plastic is not torn. The ends should have an opening about 1/4 inch from the end as seen here. If your agfa Linear Encoder Sensor is torn you can usually repair it with packing tape. Wrap the tape around the end several times and the use a small knife to cut the tape where the original hole was as seen below. Then cut the tape off the strip around the side and end. Now its time to reinstall the strip. The agfa Linear Encoder Sensor attaches to retainer brackets and both sides of the printer and is threaded through the printhead carrier in the middle. You will need the carrier to be in the middle of the printer. To get it there you will need to power up the printer and open the cover like you were going to change the print heads. Power up the printer and the print heads should start to move to the side. When they get about the center of the printer you will need to pull the power plug so they stop moving. Connect one end of the agfa Linear Encoder Sensor as seen here. Now thread the agfa Linear Encoder Sensor through the carrier as seen here. The outside opening is about 1/2 inch but the slot the encoder goes in is only about 1/16in so be patient. Then connect the other end of the agfa Linear Encoder Sensor, the left hard side is spring metal to tension the strip and keep it tight. Now if you reapply the power to the printer the carrier should move freely and move back to the right side. Close the printer cover and try a test print to see if it work. If you still get a carrier jam then the strip did not get inserted correctly through the carrier. Just disconnect it and try again.

Agfa Encoder Strip

Agfa Encoder Strip Agfa Encoder Sensor Agfa Encoder Board
Agfa Encoder Strip Agfa Encoder Sensor Board for Agfa Anapurna Agfa JetiSeries printers Encoder Encoder Sensor Encoder Board Linear Encoder Board
