Colorspan Encoder Strip

$126.48

COLORSPAN Encoder Strip

Model

Clear selection
SKU: N/A Categories: ,

Description

Colorspan Encoder Strip

Colorspan Encoder Strip 64″ Displaymaker Printer¬† COLORSPAN 72uvx Flatbed Printer¬†COLORSPAN Mcdermid 7100 Flatbed Printer

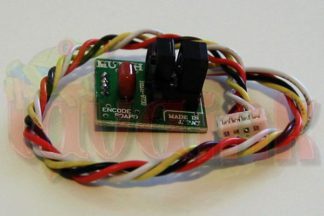

ColorSpan Encoder Board

Colorspan Encoder Board
Colorspan Encoder Board

This Encoder Board is for the following printers: ColorSpan 64″ Displaymaker Printer ColorSpan 5465 Printer 72uvx

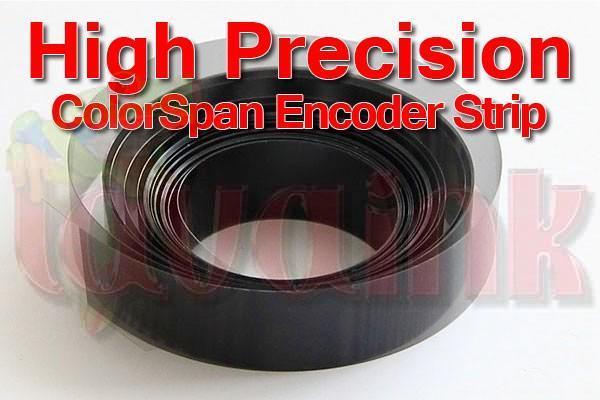

ColorSpan Encoder Strip

ColorSpan Encoder Strip
ColorSpan 64″ Displaymaker Printer Encoder Strip

This encoder strip is for the following printers: ColorSpan 64″ Displaymaker Printer

ColorSpan Encoder Strip

ColorSpan Encoder Strip
ColorSpan Encoder Strip 72uvx Flatbed Printer

This encoder strip is for the following printers: ColorSpan Encoder Strip 72uvx Flatbed Printer

ColorSpan Encoder Strip

ColorSpan Encoder Strip
COLORSPAN 72uvx Flatbed Printer Y Axis Encoder Strip

This encoder strip is for the following printers: COLORSPAN 72uvx Flatbed Printer Y Axis

ColorSpan Encoder Strip

ColorSpan Encoder Strip
COLORSPAN Mcdermid 7100 Flatbed Printer Encoder Strip

This encoder strip is for the following printers: COLORSPAN Mcdermid 7100 Flatbed Printer

COLORSPAN Encoder Strip

How to clean ColorSpan Encoder Strip?
You will need Isopropyl Alcohol, Cleaning Swabs and Paper Towels.
Putting two drops of alcohol onto each side of the cleaning swab. Dab the swab on the paper towel to soak up any excess liquid.
Wipe the exposed area of the colorspan encoder strip gently in one direction, do not try to scrub the strip or bend it. Repeat the cleaning for the back of the colorspan encoder strip.
Put the machine into Cleaning Mode under the Maintenance Sub-Menu. You will now be asked to remove the maintenance cover on the left side of the printer.
After the Head Carriage moves to the left side of the printer, continue to clean the area of the colorspan encoder strip that is now exposed over the docking area.
Once the colorspan encoder strip has been cleaned, perform a Limit Initialization to reset the Head Carriage.

All printer manufacturers use optical colorspan encoder strips in inkjet printers to tell the print head carrier how for it has moved and also when it return to home position. If you get a bad printer jam hat blocks the carrier this colorspan encoder strip can get disconnected and then the printer can not print anything. We are about to show you how to repair the strip if it is damaged and reinstall it so the printer can function again. This guide uses the Roalnd Printer as an example but the steps are the same for any printer that uses these colorspan encoder strips. The first thing to do is check the strip for damage. Check both ends and make sure the plastic is not torn. The ends should have an opening about 1/4 inch from the end as seen here.

If your colorspan encoder strip is torn you can usually repair it with packing tape. Wrap the tape around the end several times and the use a small knife to cut the tape where the original hole was as seen below. Then cut the tape off the strip around the side and end.

Now its time to reinstall the strip. The colorspan encoder strip attaches to retainer brackets and both sides of the printer and is threaded through the printhead carrier in the middle. You will need the carrier to be in the middle of the printer. To get it there you will need to power up the printer and open the cover like you were going to change the print heads. Power up the printer and the print heads should start to move to the side. When they get about the center of the printer you will need to pull the power plug so they stop moving. Connect one end of the colorspan encoder strip as seen here.

Now thread the colorspan encoder strip through the carrier as seen here. The outside opening is about 1/2 inch but the slot the encoder goes in is only about 1/16in so be patient.

Then connect the other end of the colorspan encoder strip, the left hard side is spring metal to tension the strip and keep it tight.

Now if you reapply the power to the printer the carrier should move freely and move back to the right side. Close the printer cover and try a test print to see if it work. If you still get a carrier jam then the strip did not get inserted correctly through the carrier. Just disconnect it and try again. The above article most part from http://www.ccl-la.com/blog/index.php/reinstalling-the-optical-encoder-strip-on-a-hp-officejet-8600-printer/

COLORSPAN Encoder Strip

HP Scitex FB950 | HP Scitex FB500 | HP Scitex FB700 | HP Scitex FB910 | HP Designjet H35100 | HP Designjet H35500 | HP Designjet H45100,HP ColorSpan 5440uv | HP ColorSpan 5460uv | HP ColorSpan 5445uv | HP ColorSpan 5465uv | HP ColorSpan 9840uv | HP ColorSpan 72UVR | HP ColorSpan 72UVX | HP ColorSpan 98UVR | HP ColorSpan 98UVX | HP Mcdermid 7100

Additional information

Model

HP Colorspan Encoder Board, HP Scitex FB950, HP Scitex FB500, HP Scitex FB700, HP Scitex FB910, HP Designjet H35100, HP Designjet H35500, HP Designjet H45100, HP ColorSpan 5440uv, HP ColorSpan 5460uv, HP ColorSpan 5445uv, HP ColorSpan 5465uv, HP ColorSpan 9840uv, HP ColorSpan 72UVR, HP ColorSpan 72UVX, HP ColorSpan 98UVR, HP ColorSpan 98UVX, HP Mcdermid 7100
